Price:
$4150
Product ID:
PSI-ACVAA-161616
Lead Time:
Contact Us to inquire about lead times
Return Policy:
14 days for a full refund

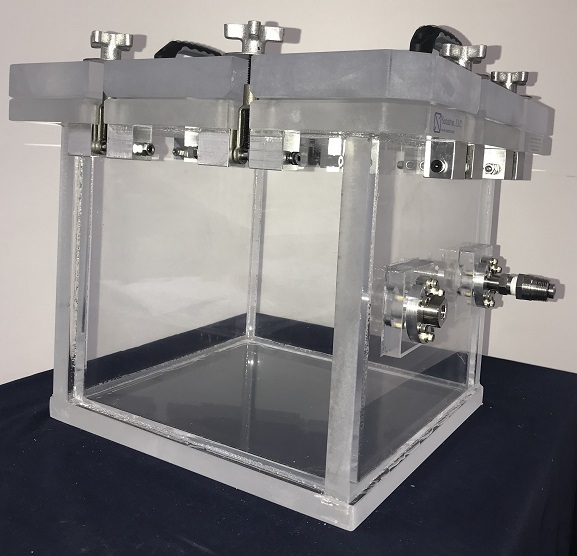

Additional Vacuum Chamber Images

Please take a look of some of the work we had the pleasure of doing for our clients. All our systems can be customized to your request. Feel free to contact us to see how we can help you design and build a good custom pressure and vacuum system.

Product Specifications

Vacuum Rating
0.075 Torr (75 micron)
Pressure Rating:
5 PSIG
Inside Dimensions (inch):
16 W X 16 D X 16 H
Product Dimensions (inch):
24 W X 24 D X 20 H
Tolerance (inch)
+/- 0.125
Chamber Material
Clear Cast Acrylic
Lid Material
Clear Cast Acrylic
Seal
Buna O-Ring
Approximate Volume
4096 cubic inch - 17.7 Gallon - 67.1 Liters

Features

Fully removable Lid
Pressure AND Vacuum Gauge
Vent Valve 1/4 NPT
Vacuum Valve 1/4 NPT
Two Handles
12 Thumb Screw Clamps
5 PSIG pop-open Pressure Relief Safety Valve
One Year Safe Buyback Guarantee

Description

This is our pressure and vacuum chamber made from crystal clear acrylic capable of full vacuum (Torr Rating) and 5 psi gauge pressure. The inside dimensions of this chamber are 16 inch cube. This acrylic chamber comes with two (2) 1/4 inch NPT valves. One valve is used to supply vacuum or pressure to your chamber, the other is used for venting your chamber. You are also supplied with a dial vacuum and pressure gauge which will indicate either vacuum or pressure in dual scale in kilopascal (kPa) and PSI. Additionally, there are two handles that are placed on the fully removable lid. The lid is clamped down by thumb clamps during pressure operations.

This chamber also comes with a vacuum rated pressure relief valve that will pop open and release excess pressure if the pressure inside exceeds 5PSI so you never have to worry about inadvertently over pressurizing your chamber. There is also a 10PSIG and 15PSIG option available, please contact us to inquire more.

Fortunately, this chamber can be customized, many of our clients do so because they have specific project needs. Please reach out to us and we will be happy to have the opportunity to look at your requirements and customization needs.
